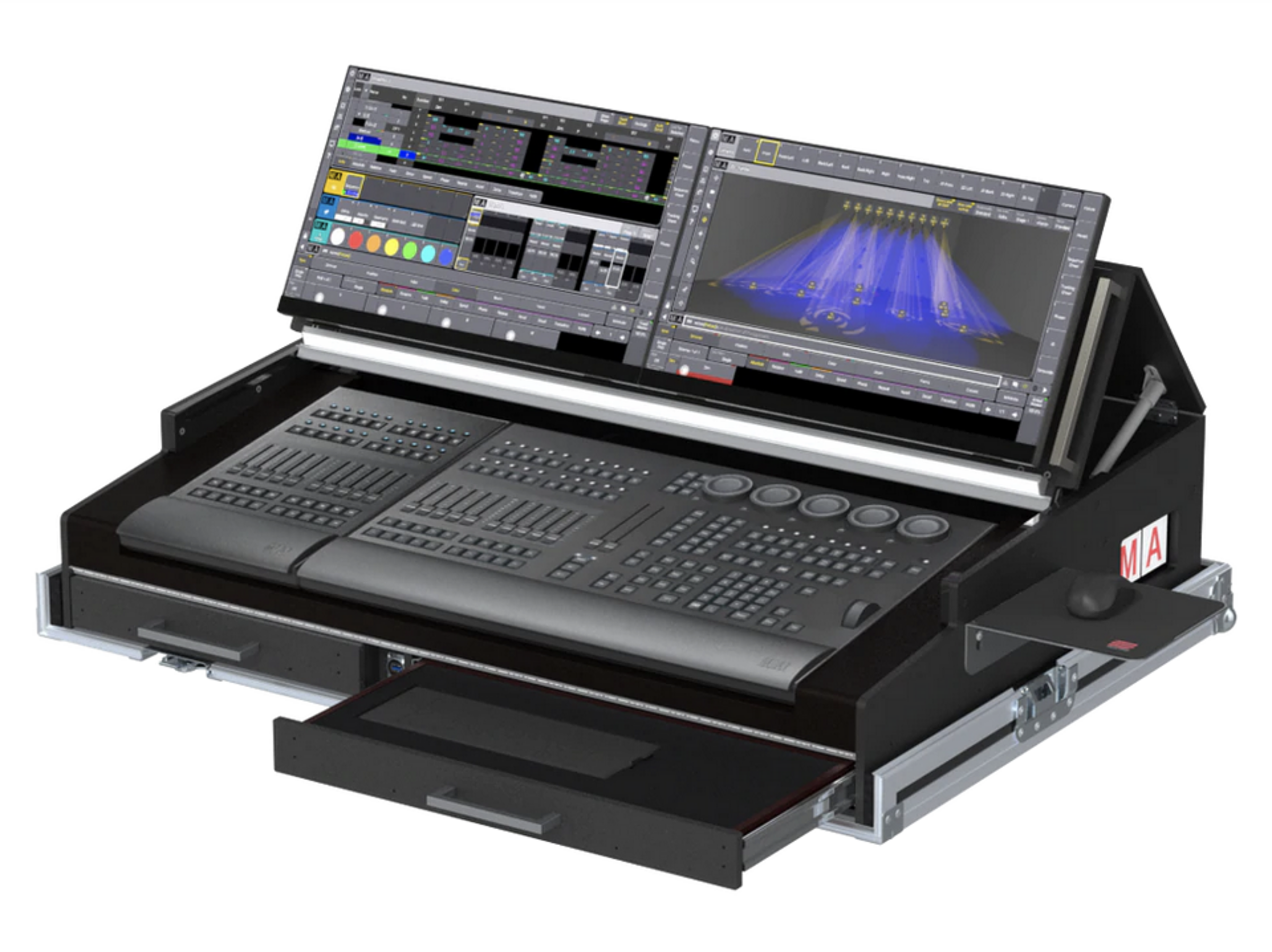

grandMA3 onPC Package - Command Wing, Fader Wing, PC, Etc.
- Includes: Command Wing, Fader Wing, Mini PC Intel® NUC Performance i7 GEN 10, Windows 10, (2) TFT 22" Touch Screen, Keyboard, Mouse and Custom Santosom Case. 4096 parameters with Command and Fader Wing.
- Delivery, setup and a technician available.
- Manufacturer
- MA Lighting
- Model
- MA4010511 · MA4023575
- Category
- Lighting · Lighting Consoles
Overview
grandMA3 onPC Package
Command Wing Features:
- Real-time control for 2 048 parameters in combination with grandMA3 onPC
- Expandable up to 4 096 parameters with onPC products and grandMA3 onPC
- Command section similar to grandMA3 compact layout
- 29 rotary RGB backlit encoder
- 5 dual encoders
- 10 motorized 60 mm faders
- 40 separate playbacks
- 16 assignable x-keys
- 2 motorized A/B faders 100 mm
- 1 Level-Wheel
- Individually backlit and dimmable silent (clickless) keys
- Just connect via USB to any PC running grandMA3 onPC
- No Mode2
- Connectors:
1 x IEC-60320 C14 cord
2 x DMX512-A Out (5pin XLR female)
1 x DMX512-A In (5pin XLR male)
1 x MIDI In (5pin DIN female)
1 x MIDI Out (5pin DIN female)
1 x Linear Timecode (3pin XLR female)
1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
1 x USB 2.0 (type B)
1 x LED desk light (4pin XLR female)
Fader Wing Features:
- Real-time control for 2 048 parameters in combination with grandMA3 onPC
- Expandable up to 4 096 parameters with onPC products and grandMA3 onPC
- 2 DMX connectors
- 1 USB connector
- 20 rotary RGB backlit encoder
- 10 motorized 60 mm faders
- 40 separate playbacks
- Individually backlit and dimmable silent (clickless) keys
