Lighting Consoles

grandMA2 full-size 8GB Lighting Console

The grandMA2 full-size represents MA Lighting’s most powerful console and offers the control of conventional light, moving lights, LED fixtures and media from one platform. Equipped with the most up-to-date technology and even some special features (e.g. keyboard drawer and multi-touch command screen), the grandMA2 is suitable for all lighting segments. It supplies an intuitive and fast control of all connected fixtures and channels. Furthermore the grandMA2 fader wing provides up to 60 extra motorized executor faders for an almost unlimited number of pages.Moreover grandMA series 1-showfiles can be converted to be used with the grandMA2. And for yet easier operation, all command keys can be found in the same place on every console of the grandMA2 series. The grandMA2 offers extremely flexible and comfortable ways of programming, including nearly infinite numbers of presets, cues, pages, sequences and effects. All grandMA2 consoles are optionally available as Silent Version with optimised fan for noise-sensitive environments. Real-time control for up to 65,536 parameters per session in connection with MA NPU (equivalent to 256 DMX universes)8,192 HTP/LTP parameters6 DMX outputs3 internal TFT wide mode touchscreens (15.4" WXGA)2 external TFT screens can be connected (UXGA, touchscreens accepted)1 internal command screen – multi-touch (9" SVGA)30 motorized executor fadersIntegrated keyboard drawerBuilt-in uninterruptible power supply (UPS)2 etherCON connectors, 5 USB 2.0 connectorsMotorized monitor wing2 motorized A/B fader 100mm Individually backlit and dimmable silent (clickless) keys

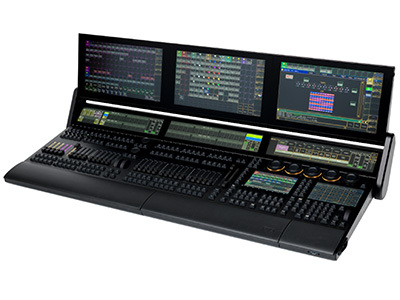

grandMA3 full-size Lighting Console

The grandMA3 full-size console is the flagship of the range. It offers the ultimate MA Lighting control hardware and is designed for professionals that appreciate the hands-on flexibility that a no-compromise solution can offer.The assignable custom area and a dedicated master area provide fingertip access to powerful functionality. Add the 120 physical playbacks and 16 assignable x-keys and the grandMA3 full-size console offers the most flexible playback platform MA Lighting have ever produced.The grandMA3 full-size console includes 20 480 control parameters as standard, ensuring that it is the perfect base platform for the world’s most prestigious entertainment lighting applications. The system size is scalable to 250 000 parameters with the use of additional grandMA3 processing units.Huge multi-touch screen real-estate provides instant access to programming tools and is fully configurable to suit individual needs. The three letterbox screens are context sensitive and dedicated to providing feedback and options for the grandMA3 playback and encoder hardware.The grandMA3 full-size is compatible with grandMA2 and grandMA3 software. The hardware is ergonomically optimized and can be considered a silent version by default. Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units6 DMX outputs, 1 DMX input3 internal foldable monitor multi-touch screens3 internal letterbox multi-touch screens2 internal multi-touch command screens2 external multi-touch screens can be connected2 multipurpose level wheels2 multipurpose single encoder71 rotary RGB backlit encoder5 backlit dual encoders30 backlit motorized 60 mm faders120 separate playbacks16 assignable x-keysIntegrated keyboard drawerBuilt-in uninterruptible power supply (UPS)3 etherCON connectors, 6 USB connectors2 backlit motorized A/B faders 100 mmIndividually backlit and dimmable silent (clickless) keys

grandMA3 onPC Package — Command Wing, Fader Wing, PC, Etc.

grandMA3 onPC Package Command Wing Features: Real-time control for 2 048 parameters in combination with grandMA3 onPCExpandable up to 4 096 parameters with onPC products and grandMA3 onPCCommand section similar to grandMA3 compact layout29 rotary RGB backlit encoder5 dual encoders10 motorized 60 mm faders40 separate playbacks16 assignable x-keys2 motorized A/B faders 100 mm1 Level-WheelIndividually backlit and dimmable silent (clickless) keysJust connect via USB to any PC running grandMA3 onPCNo Mode2Connectors: 1 x IEC-60320 C14 cord2 x DMX512-A Out (5pin XLR female)1 x DMX512-A In (5pin XLR male)1 x MIDI In (5pin DIN female)1 x MIDI Out (5pin DIN female)1 x Linear Timecode (3pin XLR female)1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control1 x USB 2.0 (type B)1 x LED desk light (4pin XLR female)Fader Wing Features:Real-time control for 2 048 parameters in combination with grandMA3 onPCExpandable up to 4 096 parameters with onPC products and grandMA3 onPC2 DMX connectors1 USB connector20 rotary RGB backlit encoder10 motorized 60 mm faders40 separate playbacksIndividually backlit and dimmable silent (clickless) keys

Avolites Arena DMX Lighting Console

The Avolites Arena is the ideal desk for festivals, theatres and anywhere that a larger control surface is required. It combines the popular interface of the Tiger Touch II with more live control than ever before. Alongside the vibrant main display, a second touch screen provides an additional workspace window, also labelling the adjacent macro buttons and rotary pots. These fully assignable playback encoder pots, allow intuitive control of channels and effects. The six LCD screens display electronic legends for 30 faders, for speedy access to all your playbacks, fixtures and palettes. A brand new optical output means the Arena is equipped for fibre connections, with no signal loss over long distances, from front of house to the stage – essential in large and outdoor venues. Offering seamless Multi User compatibility, the Arena can be used as master, back-up or extra programming surface, considerably cutting your programming time by allowing multiple Titan programmers to work simultaneously, before the main console takes charge. 40 precision playback faders in three pageable groups. 20 programmable macro executor buttons. 3 metal shaft optical attribute encoders. 4 optical playback encoder pots. 15.6” vibrant main touch screen with brightness control. 7” vibrant secondary touch screen. 6 mono LCD screens for digital fader legends. UPS battery back-up New six-position articulation stand Ergonomic trim and carry handles Robust stainless and zinc treated steel construction – built for life on the road Includes 4-port managed Gigabit network switch OpticalCON Stage link output, with an optional second link 8 physical 5-pin XLR opto-isolated DMX out, up to 16 universes over ArtNet or streaming ACN – total of 8192 console channels. Compatible with Titan Net – up to 64 universes, total of 32,768 system channels. 4 Ethercon Gigabit primary network connection with a battery maintained managed switch supporting Titan Net, ArtNet and streaming ACN. 1 Ethercon Gigabit secondary Network connection for Titan Net, ArtNet and streaming ACN. 1 standard OpticalCON stage link output, to connect to industry standard network switches with optical support. SMPTE Timecode/LTC input 3-pin XLR (transformer isolated). Trigger inputs on ¼” jack, suitable for foot switches. Audio in on stereo ¼” jack for Audio Triggering. Headphone 3.5mm jack conveniently placed on the front panel. 4 USB3 ports – 1 front, 3 rear. DVI-D for external display. Two 3-pin XLR dimmable lamp connector MIDI in, out and thru. Compatible with Titan Remote (Wi-Fi access point required) Includes: Flight Case, Dimmable Lamp x2, Cover

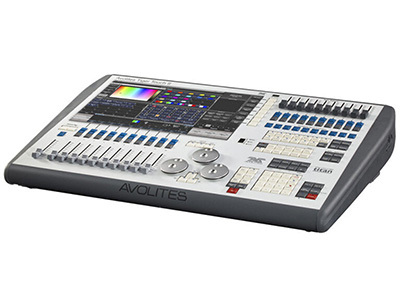

Avolites Tiger Touch 2 DMX Lighting Console

Product Overview Now offering a 100% brighter touch screen as well as enhanced processing power and speedier graphics engine, Avolites' Tiger Touch II is the heart of the Titan console range, and is the most specified of the Titan consoles with 16 Universes and 20 Playback Faders. It provides the ideal combination of power with portability. Packed with enough power for complex shows, yet small and light enough to fly in standard hold luggage, this third-generation console features SMPTE timecode support plus a redesigned button layout to match the entire Titan range. Includes Tiger Touch II Console Case Cover Lamp Specifications Manufacturer part number: 30-01-3020 Dimensions (approx.): Console only: 27" x 17.5" x 6" (675 x 435 x 147mm) Case: 29" x 24" x 10.25" (735 x 600 x 260mm) Weight (approx.): Console only: 34 lbs. (15.2 kg) Console in case: 64 lbs., 13 oz. (29.40 kg)

Avolites Titan Mobile w/​HP Touchsmart PC

Avolites Titan Mobile binds the awesome power of Titan software with a compact and lightweight unit that connects to your laptop to produce a fully featured moving light control system. Small enough to carry hand luggage on flights large enough for complex shows, transferable shows to and from any other Titan based console.10 playbacks with assignable controls 2- direct access workspaces, macros and executors 4 physical DMX, up to 16 over ArtNet or sACN - 8192 channels Supports Titan Net Processors for DMX expansion up to 64 universes Customise your setup to your needs – all-in-one touchscreen PC, laptop, rack mount solutions... Three metal shaft optical encoders offer luxurious precision MIDI support for MIDI Notes and MIDI Timecode Expand your control surface through wings, DMX In or MIDISupport for up to 2 touch screens USB powered, no need for mains connection

Avolites Titan Mobile Wing

Titan Mobile Wing gives direct access to your most used items, such as Shape Overlay Cues, Blinders, House Lights, Smoke Machines or Performer Key Lights for TV productions. A generous 30 user-programmable Executors offer control or selection of Cues, Lists, Palettes, Groups or Macros. Live Playbacks, Solo and Flash buttons, user programmable buttons and Attribute controllers enable fast and accurate show programming in a flight friendly package. The Titan Mobile Wing is compatible with all Titan consoles (except the Titan One).Compatible with all Titan consoles (except Titan One) 20 smooth playback Faders 30 programmable Executors Local, Independent Paging Control USB Powered - no need for a separate PSU Robust construction, built for the life on the road Dedicated workspace window in Titan software

Avolites Infinity Ai R8 Media Server

The Ai R8 offers 8 DisplayPort outputs and up to 12 layers and 8 outputs depending on project configuration, with top spec, fully featured Miami licences.Hardware includes the latest generation motherboards supporting PCI-Express Generation 3.0, AMD Gen 3 Graphics Cards and an Intel PCIe SSD module with 1.2TB capacity.Ai R8 servers offer MIDI Timecode inputs and supports ArtNet and CK Ki-Net output protocols. Ai R8 features: Smooth playback of up to 8K media using the AiM Codec Up to 4 or 8 full 1080p HD outputs Soft-edge blending of multiple projectors Timeline, Timecode Sequencer Build and create in the 3D Stage Visualiser Remote vertex adjustment Map and warp onto any 3D surface Videomap onto any moving scenery Intuitive modular LED support Configure multiple systems as Master or Slaves Salvation node based engine Supplied pre-installed with an extensive Media Library of 320 HD AiM clipsCapture input options: 4x 3G-SDI inputsAdditional Included Options: Genlock Camera Sync LTC Timecode Input 4 DMX outputs

ETC Eos 8000 Lighting Console

4-port Net2 Gateway included with rental.Complete control of conventional and moving lights, LEDs and media servers. Supports multiple users with partitioned parameter control and full backup, multiple playback faders and cue lists in a tracking, move fade environment, with unique tactile response direct selects and encoders.FEATURES• 8192 outputs/parameters • 10,000 control channels• 99 Discrete Users• Partitioned Control• Master playback pair with motorized 100mm faders• Ten 100mm motorized faders x 100 pages for configurable faders, submasters, masters and grandmaster control• 2 full size LCD touchscreens for display, direct selection and context sensitive control• LCD direct selects with tactile response • Four discrete palette types (IFCB)• Presets function as “all palette”• Effects provide dynamic relational and absolute progressive behavior• Central information area (CIA) accesses electronic alpha keyboard, Hue + Saturation color picker, gel picker, browser and other controls• 1 context sensitive LCD touchscreen with six associated force-feedback encoders for non-intensity parameter control• Configurable high-density channel display, with format and flexi-channel modes • User configurable topographical channel views• List views of all record targets• ETCNet2™ and Net3™ (powered by ACN) network output protocols• Show import from Obsession®, Express™, Expression®, Emphasis®, Congo® and Strand 500/300 Series via ASCII• Multiple MIDI and/or SMPTE Time Code Inputs, MIDI Through and Output, Analog/Serial Inputs • Virtual Media Server function for pix mapped effects, images and animations

Avolites Pearl 2008 DMX Moving Light Controller

The console Pearl 2008 combines strength and flexibility at very small dimensions. As with all Avolites consoles so the Pearl 2008 is designed for quick and easy programming and implementation. The Presets available to give ease and flexibility in many type options: pan, tilt, colour, gobo, etc. All the memories of the changes are automatically saved, allowing the user – programmer to create without fear of data loss. Specifications: Internal Flash Drive, similar in functionality to a hard disk but faster and more rugged. Provides enough storage for the entire Fixture Library of more than 3,000 files or over a hundred show files. Removable external USB Memory Stick. Cache the entire Fixture library of more than 3,000 files Improved method of Fixture selection for Patching New Locate Fixture button Fixture Selects (selecting the top row of faders) 2048 Channels across 4 DMX universes. 240 Intelligent Fixtures. 240 Dimmer Control Channels. Theatrical Plotting and Playback functions. Shape Generator for instant creation of patterns and effects. 15 Playback Masters controlling 450 memories, chases or cue lists. MIDI and Bass, Mid, Treble sound to light triggers. Colour VGA output fitted as standard.

Avolites Titan One Virtual Console Dongle

Rental includes Titan One Dongle ONLY. Computer rented separately. Fast and Intuitive control of intelligent lighting, Dimmers and LED effects from one on screen console. Titan One DMX USB Dongle allows the user to output one line of DMX with the full functionality of Avolites Titan Software.Access powerful features such as Pixelmapper, Quicksketch, Media Clip Select, Attribute Control-Blades and Shape Generator. Titan One allows you unlimited usage which gives you uninterrupted programming and playback time. Cost effective solution for schools and installs market 10 pageable playbacks, 60 pages Unique interface for best user experience Single DMX output - 512 Channels Dedicated cue stack control Touch screen support

Chauvet Obey 4 D‑Fi 2.4 Wireless LED Controller

Chauvet Obey 6 DMX LED Lighting Controller

City Theatrical DMXcat Multifunction DMX Test Tool

***Android or iOS Device not included with rental. The DMXcat™ system from City Theatrical is a useful device that's designed for the lighting professional who is involved with the planning, installation, operation, or maintenance of theatrical and/or studio lighting equipment. It consists of a compact hardware interface device and a suite of mobile applications. Together, they combine to bring DMX/RDM control plus several other functionalities to the user's smartphone for use wherever and whenever needed. Developed with input from designers and technicians, the DMXcat should prove to be an indispensable tool for lighting users. The DMXcat will operate with both Android and IPhones. DMXcat's interface unit is a small battery device that can easily fit in a pocket or tool pouch, or can be worn on a belt. It employs Bluetooth® LE technology for communication with the smartphone/applications (up to 35ft range). Without the limitations of a physical connection, the user is free move about the work-space as needed with their smartphone, running the various apps, while still using the phone for on-the-job communication. The device's 5-pin XLRF connector/cable assembly allows it to be connected to a point in a DMX data chain to allow testing and/or control of the various DMX/RDM channel functions. It is charged using a standard USB to Micro-USB cable and charger. Other highlights include a built-in LED flashlight, audible alarm (for locating a misplaced unit), LED Status indicator, plus a removable belt clip. Includes: DMX Controller Fixture Controller RF Spectrum Analyzer DIP Switch Calculator Light Meter (Android only) Specifications: CTI Part No.: 6000 Wireless communication: Bluetooth LE Range: 35ft (10m) Status LED indicator: Yes, multicolor Flashlight: White LED Charging port: Micro USB DMX connection: 5PXLRF (5-pin female XLR) Apps: 7- Android and 6- iOS Optional: RDM Controller, DMX Tester Construction: NEMA 1 ABS enclosure Physical: Dimensions (WxLxH): 1.63" x 3.75" x .94" (41.4 x 95.3 x 23.9mm) Weight: 0.3 lbs (0.14 kg) Compliance: CE, RoHS, FCC Notes: There are currently seven (7) tools available or in development for use within the DMXcat app. Apps are available through Google Play (Android) or the Appstore (IPhone). Apps Include: DMX Controller: a single universe (512) DMX channel controller with two (2) user interfaces Fixture ControllerDMX: test app for multi-attribute fixtures with built in database of lighting fixtures RDM Controller: App for bi-directional communication/control of RDM enabled devices DMX Tester: Permits users to analyze and or adjust settings for transmitting or receiving DMX RF Spectrum Analyzer: For surveying and visualizing Wi-Fi® networks DIP switch calculator: This app simplifies the configuring of DIP switches used for setting DMX addresses Light Meter (Android only): Useful for setting light levels for on-camera use

City Theatrical SHoW DMX SHoW Baby 6 Wireless DMX

Elation eNode8 Pro 8‑Universe Ethernet-DMX Node

8-universe Ethernet-DMX node which supports Art-Net, sACN, and RDM compatible DMX control systems

Elation EWDMXR Wireless DMX Receiver

Elation EWDMXT Wireless DMX Transmitter
