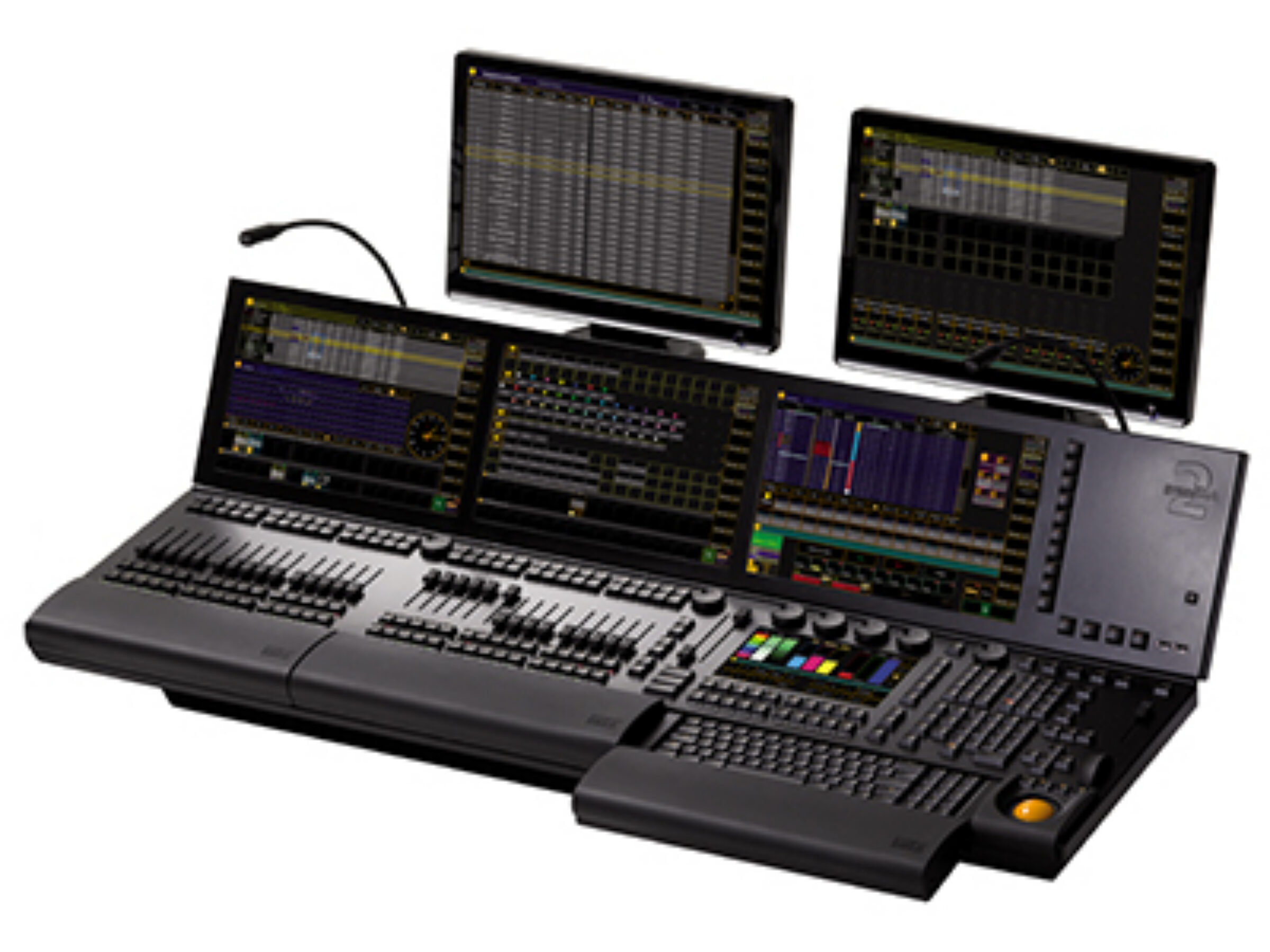

grandMA2 full-size 8GB Lighting Console
- Includes: console, road case, (2) console lights, dust cover and power cable. Additional monitors can be added. This is the 8GB Version.
- Delivery, setup and a technician available.
- Manufacturer
- MA Lighting
- Model
- grandMA2 full-size - 120111
- Category
- Lighting · Lighting Consoles
Overview
The grandMA2 full-size represents MA Lighting’s most powerful console and offers the control of conventional light, moving lights, LED fixtures and media from one platform.
Equipped with the most up-to-date technology
and even some special features (e.g. keyboard drawer and multi-touch
command screen), the grandMA2 is suitable for all lighting segments. It
supplies an intuitive and fast control of all connected fixtures and
channels. Furthermore the grandMA2 fader wing provides up to 60 extra
motorized executor faders for an almost unlimited number of pages.
Moreover
grandMA series 1-showfiles can be converted to be used with the
grandMA2. And for yet easier operation, all command keys can be found in
the same place on every console of the grandMA2 series. The grandMA2
offers extremely flexible and comfortable ways of programming, including
nearly infinite numbers of presets, cues, pages, sequences and effects.
All grandMA2 consoles are optionally available as Silent Version with optimised fan for noise-sensitive environments.
- Real-time control for up to 65,536 parameters per session in connection with MA NPU (equivalent to 256 DMX universes)
- 8,192 HTP/LTP parameters
- 6 DMX outputs
- 3 internal TFT wide mode touchscreens (15.4" WXGA)
- 2 external TFT screens can be connected (UXGA, touchscreens accepted)
- 1 internal command screen – multi-touch (9" SVGA)
- 30 motorized executor faders
- Integrated keyboard drawer
- Built-in uninterruptible power supply (UPS)
- 2 etherCON connectors, 5 USB 2.0 connectors
- Motorized monitor wing
- 2 motorized A/B fader 100mm
- Individually backlit and dimmable silent (clickless) keys
