Main Speakers

d&b KSL8 3‑Way Line Array Loudspeaker

Medium to large format 3-way line array loudspeaker Dispersion 80° SPLmax 145 dB Weight 58 kg / 128 lbs

d&b KSL12 3‑Way Line Array Loudspeaker

Medium to large format 3-way line array loudspeaker Dispersion 120° SPLmax 144 dB Weight 58 kg / 128 lbs

d&b V8 3‑Way Line Array Loudspeaker

d&b V12 3‑Way Line Array Loudspeaker

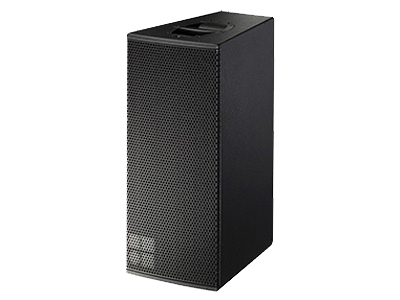

d&b V10P 3‑Way Loudspeaker

d&b Audiotechnik V10P 3-Way High Performance Loudspeaker

d&b V7P 3‑Way Loudspeaker

d&b Audiotechnik V7P 3-Way High Performance Loudspeaker

d&b Y10P 2‑Way Loudspeaker

d&b Audiotechnik Y10P 2-Way High Performance Loudspeaker

d&b C7 2‑Way Loudspeaker

The C7-TOP is a 2-way horn loaded loudspeaker that exhibits true constant directivity above a frequency of 600 Hz, ensuring equal sound within the coverage area. The bass-reflex design of the low end allows the C7-TOP to be used without a subwoofer, and with its medium to high sound pressure levels and extended directivity it is ideal for balcony or stadium sound reinforcement, delay and background music playback. Where a more powerful PA system is required a C7-TOP can be stacked with two C7-SUBs. The C7-TOP cabinet is constructed from marine plywood, has an impact resistant paint finish, steel handles and MAN CF4 stud plate rigging points. The front of the loudspeaker cabinet is fitted with catches at the top and bottom for securing an optional wooden lid, and mounted on the rear panel are ratchet strap guide plates, two hinge plates and four heavy duty wheels.System data:Frequency response (-5 dB)68 Hz - 18 kHzCabinets per channel D20/D80 2Max. sound pressure (1m, free field)1 with D20/D80 138 dB SPLLoudspeaker data:Power handling capacity (RMS/peak 10 ms)200/800 WNominal dispersion angle (h x v)75° x 40° CD2Components 15" driver/1.5" compression driverDimensions / Weight:Dimensions (H x W x D)580 x 580 x 620 mm3 / 22.8 x 22.8 x 24.4"3Weight52 kg / 115 lb

d&b Q1 2‑Way Line Array Loudspeaker

The Q1 is a passive 2-way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 1.3" HF compression driver fitted to a toroidal waveshaping device. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wavefront. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to 20 cabinets with a fully user and venue defined vertical profile. The Q1 cabinet is constructed from marine plywood, incorporates a pair of handles and has an impact resistant paint finish. The front of the loudspeaker is protected by a rigid metal grill covered with replaceable acoustically transparent foam, and two NL4 connectors wired in parallel are mounted on the rear panel. System data Frequency response: (-5 dB)60/1001 Hz - 17 kHzCabinets per channel: D20/D80 2Max. sound pressure: D20/D80 139 dB SPLLoudspeaker data Power handling capacity: (RMS/peak 10 ms)400/1600 WNominal dispersion angle: (h x v)75° x 15°Components: 2 x 10" driver/1.3" compression driver Dimensions / weight Dimensions: (H x W x D)308 x 580 x 410 mm/12.1 x 22.8 x 16.1"Weight: 22 kg/49 lb

d&b E3 Loudspeaker

The E3 is an extremely small and versatile high performance system with astonishing sound and excellent headroom. The horn, which may be rotated to give either 90° x 60° or 60° x 90° coverage, has the necessary flexibility in directivity to enable a variety of applications such as delay, infill or distributed sound reinforcement applications. In addition, it can be used as an extremely compact stage monitor. Together with a subwoofer system the E3 is also capable of reproducing live or playback music at continuously high SPLs. The E3 cabinet is constructed from marine plywood with an impact resistant paint finish, and with its asymmetrical shape and eight M8 threaded inserts for mounting accessories the E3 can be deployed in almost any position. System data: Frequency response (-5 dB)80 Hz - 18 kHzMax. sound pressure (1m, free field) with D6/D12/D80122/123/123 dB SPLCabinets per channel D6/D12/D804 Loudspeaker data: Power handling capacity (RMS/peak 10 ms)120/480 WNominal dispersion angle (h x v)90° x 60° CD rotatableComponents6.5" driver/1" compression driver with constant directivity horn Dimensions / Weight: Dimensions (H x W x D) 352 x 190 x 204 mm / 13.9 x 7.5 x 8"Weight 7.2 kg / 16 lb

EAW KF730 Line Array 3‑Way Speaker

EAW KF737 Line Array 3‑Way Speaker

EAW NTL720 Powered Line Array Speaker

RCF HDL 20‑A Powered Line Array Speaker

EAW KF650z 3‑Way Speaker

EAW KF695z 3‑Way Speaker

Anchor Liberty Battery Powered Speaker

Anchor PA-2500 Active Speaker w/​Mixer
