LED Lighting Instruments

Martin ERA 800 Profile / Performance LED Moving Head

Fixture comes standard as a Profile. If you would like the Performance model with the framing shutters this will remove one of the gobo wheels to allow for the framing shutter module. Combining a fully-featured, cost-efficient and no-nonsense fixture, the Martin ERA 800 Profile is perfect for stadium-sized entertainment and rental productions. Designed to fulfill the demand for a tour-worthy, compact, LED profile moving head with enhanced gobo load-out aimed for the largest stages, the ERA 800 Profile bundles an extremely efficient 800 W, 6,500 K LED engine that produces a powerful 34,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment and dual rotating gobo wheels plus an additional static wheel. It’s also loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially whencombined with the included rotating prisms.

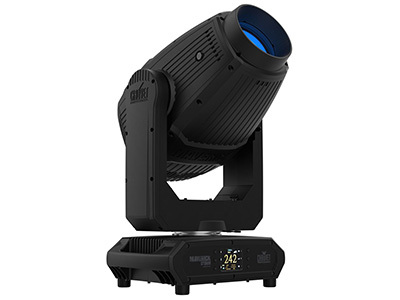

Maverick Storm 2 Profile LED Moving Head

Maverick Storm 2 Profile fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,000 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5 degree beam, and freely create with a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers downAt a GlanceFully featured, compact and lightweight IP65 580 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 10:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, integrated sun shield 16-bit dimming of master dimmer for smooth control of fades Variable CMY + CTO color mixing system to create a wide pallet of colors CRI and CTB filters on color wheel for added flexibility One rotating, indexing and interchangeable slot and lock gobo wheel One rotating static gobo wheel DMX , WDMX, sACN, and Art-Net for full flexibility of control options RDM control over DMX for fixture reporting 6.3° to 58.6° zoom range for variable beam sizes Iris, 5-facet prism and frost for beam control True 1 compatible power input Integrated sun shield for protecting the optical path from sunlight when the fixture is off Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup USB slot for software uploads Battery backup display with auto-rotate depending on fixture orientation

Martin MAC Aura XB LED Wash Moving Head

Packaged in 6-Unit Flight Cases w/ Power Cables, Half Couplers and Safety Cables. The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package. Super bright single lens wash with fully premixed color Compact design and low weight High efficiency, low power consumption, long service life Specifications Physical Height: 360 mm (14.2 in.), head straight up Length: 302 mm (11.9 in.) across yoke Weight: 6.5 kg (14.4 lbs.) without accessories Width: 302 mm (11.9 in.) across yoke

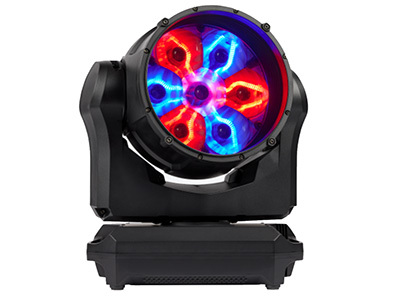

Martin MAC Aura XIP IP LED Wash Moving Head

Packaged in 6-Unit Flight Cases w/ Power Cables, Half Couplers and Safety Cables. MAC Aura XIP is a premium moving head wash light with a radical aura filament effect and full pixel control with video mapping capabilities onto the beam, aura, or both. It’s Martin's latest addition to the MAC Aura family of workhorse wash lights and the first fixture in its class to be rated for outdoor use, with close to zero compromises in weight, size, and aesthetics due to Martin’s smart outdoor-capable design. It raises the bar for optical quality, featuring an even wash field with soft edge, minimal stray light, and high intensity mid-air beams with improved light engine control. Perfect for a wide range of concert and touring productions, MAC Aura XIP is equipped with a smart, outdoor design for festivals and events, while still being quiet and lightweight enough for theater, television, corporate events and more. While MAC Aura XIP offers lighting designers a range of possibilities with its aura filament effect, narrower beam and better wash quality with improved light engine control; rental customers will appreciate a workhorse that is lighter and more versatile with optical improvements and a sealed design, allowing the product to be used virtually anywhere and require less maintenance. Features LIGHT SOURCE 6,000 lumens RGBW light output High narrow intensity: 360,000 cd Pixelated Beam: 7x 60W RGBW LEDs Filament Aura: 12x 4W RGBW LEDs Fully calibrated using Martin's Full Gamut Color Calibration Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications LED Driver frequency adjustable for demanding applications OPTICS Tight beam and beautiful wash field 6.3 – 50.4˚ zoom – Precise, silent and fast zoom Even soft edge wash field with zero hotspot High intensity mid-air beams Minimal stray light Minor color temperature shift from center to edge SOFTLENS ACCESSORY INCLUDED Creates an even softer edge wash field Minimal impact to Aura filament effects Attaches to front of fixture Can remain attached to fixture inside flightcase SiP COLOR PALETTE RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones Calibrated and Extended Color Modes Calibrated CTC control: 1,000 – 12,850 K Green Magenta Shift (Tint) Control Tungsten Emulation Option Virtual Color Wheel DYNAMIC EFFECTS More than 200 built-in FX macros with control of foreground color, background color, speed and direction P3 video mapping of fixture Beam pixels and/or Aura filaments P3 Mix allowing crossfade between video looks and DMX looks High-speed pan, tilt and zoom COOLING AND NOISE Ultra-quiet cooling system Theater / Broadcast mode at just 25.2 dB(A) Low noise pan/tilt and effects operation CONSTRUCTION Smart outdoor rating for any weather condition Weight 8.95 kg (19.73 lbs.) Dimensions: 338 x 380 x 226 mm CONTROL Battery-powered control panel on the base DMX in & thru Ethernet in & thru, supporting Art-Net, sACN & Martin P3 Fail-safe bypass on Ethernet ports RDM over DMX and RDM over Art-Net

Martin MAC Quantum Profile CMY Moving Head

This extremely bright LED profile fixture combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology. First real alternative to a 700/800 watt HID fixture Flat field, crisp image, high contrast Full feature set including CMY color mixing and 1:3 zoomTech Specs Physical Length: 452 mm (17.8 in.)Width (across yoke): 431 mm (17.0 in.)Height (head straight up): 642 mm (25.3 in.)Height (maximum): 648 mm (25.5 in.)Weight: 23.2 kg (51.1 lbs.) Dynamic Effects Color mixing: CMY, independently variable 0 - 100%Color wheel: 6 color filters plus openRotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shakeStatic gobo wheel: 10 gobos plus open, wheel indexing, rotation and shakeBeam effects: Rotating three-facet prismZoom: MotorizedFocus: Motorized, with zoom-focus trackingIris: 0 - 100%, pulse effectsShutter effect: Electronic, with variable speed regular and random strobeElectronic dimming: Four dimming curve optionsPan: 540°Tilt: 268°Pan and tilt speed: Adjustable via onboard control panel and DMX Control and Programming Control system: DMXRDM: ImplementedControl resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tiltDMX channels: 19/27Setting and addressing: Control panel with backlit graphic displayDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: RS-485Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box Optics Light source: 475 W LED engineLED refresh rate: 3000 HzMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Zoom range: 12° - 36° (1:3)Output: 12,700 lumens*Figure obtained under manufacturer´s test conditions Construction Color: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20 Installation Mounting points: 4 pairs of quarter-turn locksLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.2 mMinimum distance to illuminated surfaces: 2.0 m Connections AC power input: Neutrik PowerConDMX and RDM data in/out: 5-pin locking XLR Electrical AC power: 120-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeMaximum total power consumption: 750 WTypical power consumption, all effects static, zero light output: Approx. 50 WTypical half-cycle RMS inrush current: 10.3 A Typical Power and Current 120 V, 60 Hz: 4.8 A, 576 W, PF 0.999208 V, 60 Hz: 2.8 A, 568 W, PF 0.991230 V, 50 Hz: 2.5 A, 565 W, PF 0.988240 V, 50 Hz: 2.4 A, 565 W, PF 0.988Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° CMinimum ambient temperature (Ta min.): 5° CTotal heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

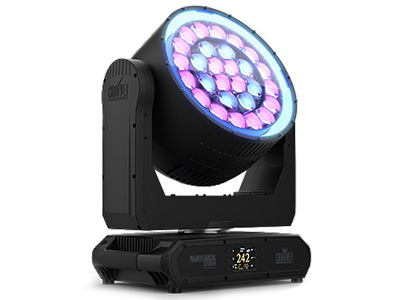

Maverick Storm 3 BeamWash v2 — IP65 Rated

Maverick Storm 3 BeamWash creates new possibilities with two zones of zoom control. Both zones independently zoom from 4.6° to 53.6° allowing for beam and wash combinations from a single fixture. A 16-lens outer zone and 12-lens inner zone combine to deliver a massive 19,062 lumens of output from 28x45W RGBW LEDs. Built-in macros with foreground and background control easily generate stunning pixel eye candy. A unique lens design delivers excellent color blending, tight aerial beam effects and visual impact live or on camera. Dual mode operation enables pixel-mapped eye candy to run under ArtNet/sACN control with separate assignment of motorized functions to DMX. Housed in an advanced IP65-rated alloy body, Maverick Storm 3 BeamWash is built with the durability and versatility to perform in any venue, indoors or out.

Q‑Wash 560z Moving Head Zoomable LED Fixture

The Chauvet Q-Wash 560Z-LED is a lightweight, LED moving yoke with a variable zoom (six-32 degrees) ideal for highlighting specific areas or to flood the stage with light. Powered by 91 three-watt RGBAW CREE LEDs, it delivers massive, flicker-free output”from the most vibrant hues to subtle pastels. A quick pan-and-tilt speed allows the fixture to get into position. Q-Wash 560Z-LED features three- and five-pin DMX connections. SpecificationsPan & tilt: 540 / 270DMX connection 3-pin & 5-pin Source: 91 (3 W) LEDs, 50,000 hoursConfiguration: 22 red (800 mA), 23 green (800 mA), 22 blue (800 mA), 12 white (800 mA), 12 amber (800 mA) Installed Optic(s): Zoomable optics from 632Beam angle: 6- 32Field angle: 9- 37Lux: 13,100 (6) - 917 (32) @ 5 mAC Voltage Range: 100 - 240 V, 50/60 Hz (auto-ranging)Power Consumption 120 V, 60 Hz: 309 W, 2.7 A (operating)Power Consumption 230 V, 50 Hz: 289 W, 1.4 A (operating)Dimensions: 13.3 x 9.1 x 14.2 in (339 x 232 x 361 mm)Weight: 21.2lbs (9.62kg)Power Connection: IECControl Connection: 3-pin & 5-pin DMXCertification: CE, ETLcEnvironment: IP20, dry location

AAdyntech Punch Plus LED Kit — Daylight

AAdyntech Punch Plus LED Kit - 2.5K HMI Equivalent w/ Barndoors, Lens Kit and Color Correction Filters The AAdynTech Punch Plus is the most powerful daylight-balanced white light professional LED fixture available today. Flicker free up to 12,000 fps, the fixture delivers an incredible output of 4,044 fc @ 10 feet, comparable to a 2,500 watt HMI, while consuming less than 5 amps of power. The Punch Plus is self-contained with a universal power supplyand, unlike traditional HMI's, the need for heavy and expensive head cables, ballasts or spare lamps is eliminated, dramatically reducing transport weight. Crew and talent safety is always a concern and the Punch Plus generates minimal heat and can be held with bare hands and harmful UV or IR emissions are virtually eliminated. Instant 'ON' ensures no warm-up wait time on set. The Punch Plus Daylight comes with a built-in Wireless DMX/RDM Receiver. This model may be operated in either wired or wireless configuration further expanding its versatility. Specially designed holographic lenses provide optical efficiency by creating a single light source, effectively eliminating multiple shadows. These quick change lenses are included to adjust the beam angle for narrow, medium or flood while maintaining a flat, even field. A heavy-duty yoke is provided. AAdynTech Punch Plus Features Brighter than a 2500 watt HMI 4044 foot candle output at 10 feet 5600K CCT Draws only 4.8 amps at full output Auto range voltage - 100/277 VAC - 50/60Hz Up to 90% energy savings Precise brightness control w/ variable dimming curve Single light source eliminates multiple shadows Flicker-free up to 12,000 fps No heat generation - operates cool to the touch Douse button (momentary off) Included: hard gel filters, 1/4 CTO & 1/4 MG Included 5deg., 15deg., 30deg., 55deg. lenses to vary beam angle No head cables, ballast or spare lamps Built-in digital User Interface Module (UIM) control Recalibration countdown hour 'smart' meter Wireless or wired DMX In/Out or digital remote PowerCon AC Cable Programmable multiple lightning and strobe effects Multiple user memory storage with recall 2 year warranty on fixture Operating temperature at -20c to +50c Certified UL, ETL, CSA, CE & Rosh compliant USA & International Patent Pending

CD-1000WS Daylight LED Fresnel

This LED Fresnel light is a focusable spotlight used in film, television, and theater. It can be adjusted via a knob on the back of the light from "spot" for a narrowly focused beam, to "flood" for a wider beam.SPECIFICATION - Power Output: 100W - Irradiation : 120 Degree - Power Supply : AC90 - 240V 0.5A - Color Temp: 5500K (3200K w/ included Magnetic CTO Filter) - Max. Luminosity: 1800lux (2m) - Light Head Length: 22cm - Net Weight: 3.9kg - Package Size: 31 x 25 x 24cmINCLUDES: 1 - CD-1000 LED dimmable LED Fresnel 1 - Dichroic filter converts (Color temperature from 5500K to 3200K) 1 - Switch On / Off Control 1 - 4-Way Barndoor

COLORado 1 Tour LED Par

COLORado 1 Tri‑7 Tour LED Fixture

COLORado 1 Tri-7 Tour LED Par - (7) 3W RGB LEDs

COLORado 1‑Quad IP LED Par

COLORado 1‑Tri Tour LED Par

COLORado 1QS LED Par — IP65 Rated

COLORado 1QS COLORado 1QS is a robust indoor/outdoor wash light that delivers fully homogenized output from a single, high-power RGBW LED source. A 17° beam angle offers versatile control and 16 bit-dimming facilitates smooth fades. The unit’s IP65 housing makes it ideal for touring, rental, and production markets. Outdoor-rated power and data connectors allow for easy connections without propriety cabling. The unit also includes an omega bracket with ¼ turn adaptors for fast and easy rigging and is compatible with all 7.5” accessories.

COLORado Batten 144 Tour LED

COLORado Batten 72 Tour LED

COLORband H9 USB RGBAWUV LED Batten

COLORdash LED Batten
