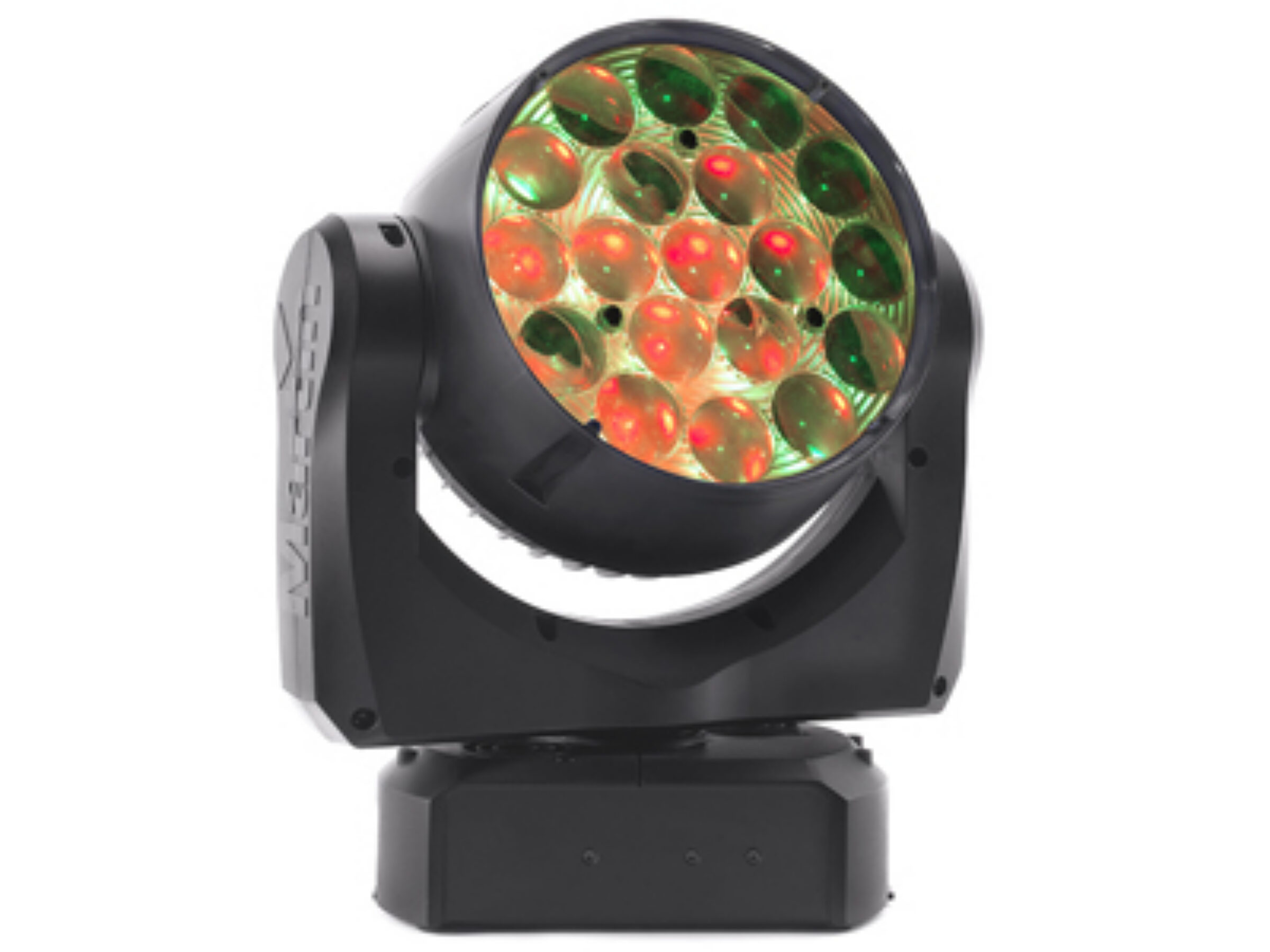

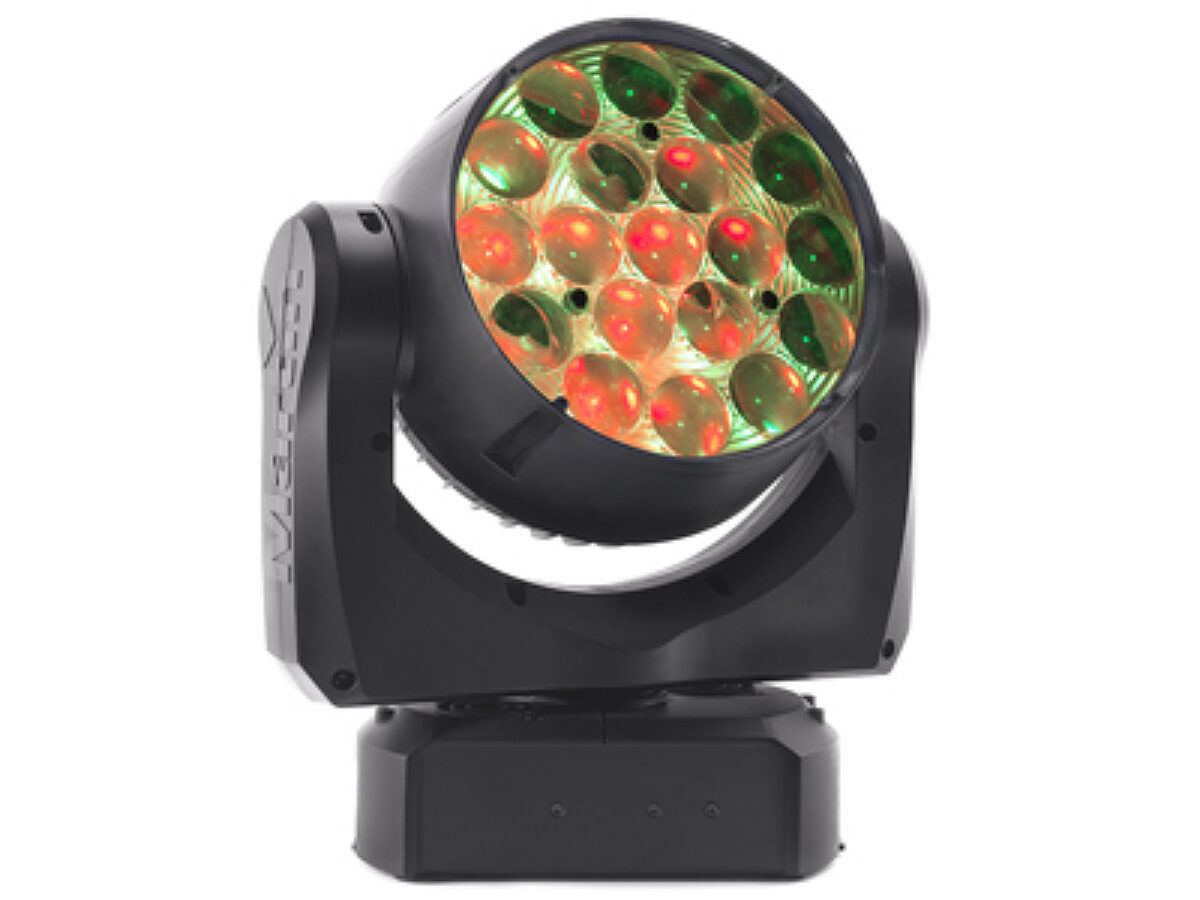

MAC Aura XB LED Wash Moving Head
- Manufacturer
- Martin
- Model
- MAC Aura XB - 90232100 · 90232110
- Category
- Lighting · Moving Lights
Overview
Packaged in 6-Unit Flight Cases w/ Power Cables, Half Couplers and Safety Cables.
The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.
- Super bright single lens wash with fully premixed color
- Compact design and low weight
- High efficiency, low power consumption, long service life
Specifications
Physical
- Height: 360 mm (14.2 in.), head straight up
- Length:
302 mm (11.9 in.) across yoke
- Weight:
6.5 kg (14.4 lbs.) without accessories
- Width:
302 mm (11.9 in.) across yoke
Features
- Super-bright single-lens wash with fully premixed color
- Broad color palette, RGBW color mixing
- Eye-candy Aura Effect™
- Uniform shades
- Built-in FX engine
- 10 to 60° uniform zoom
- 6000 Lumens output
- Rapid movement
- Compact, low weight design (6.5 kg/14.4 lbs.)
- High efficiency, low power consumption, long lifetime
