Decimator
MD-LX HDMI/SDI Bidirectional Converter
- Manufacturer
- Decimator
- Model
- MD-LX
- Category
- Video · Video Adapters and Converters
Overview

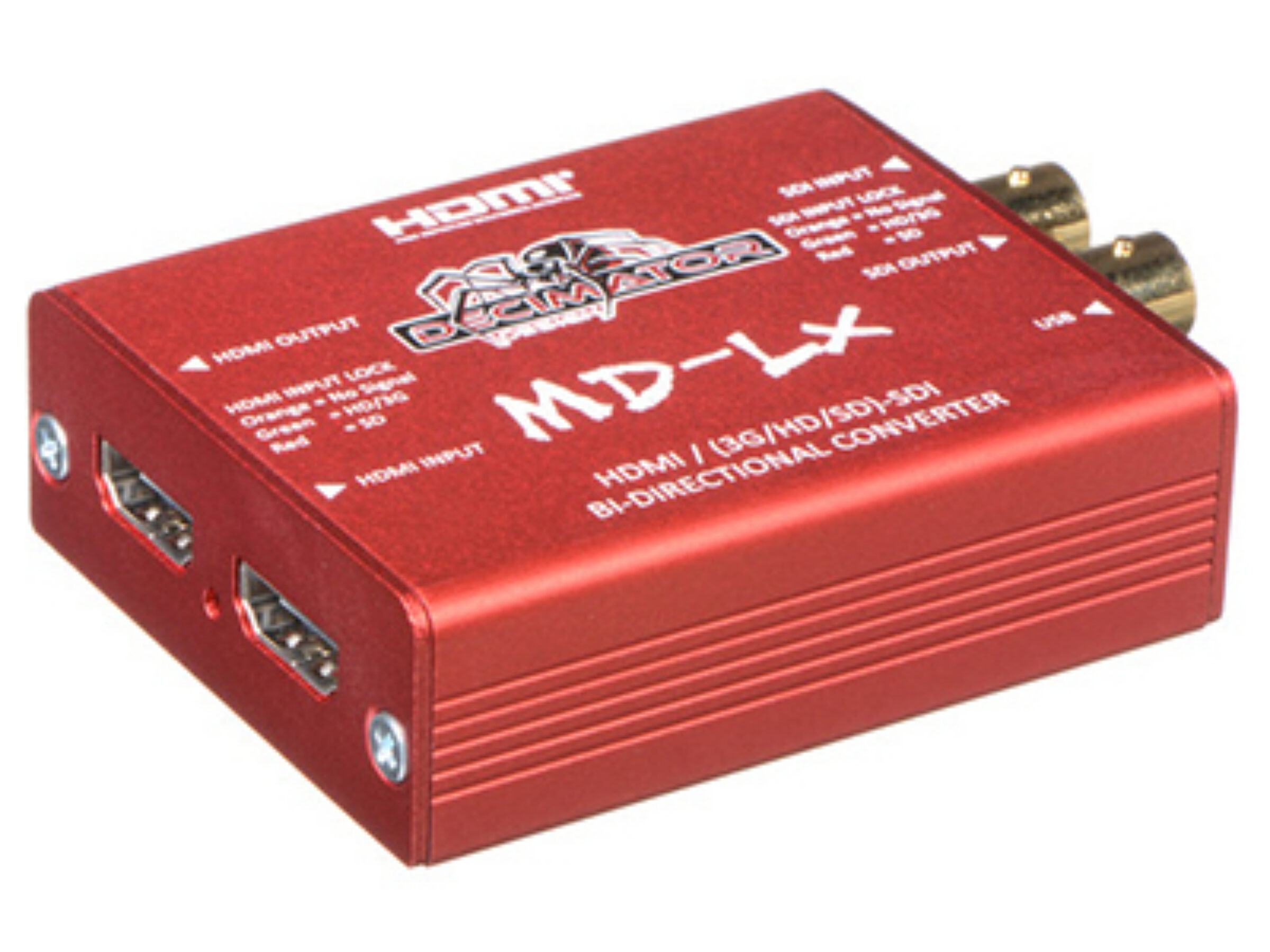

The DECIMATOR MD-LX is a pocket-sized bidirectional converter featuring an HDMI input and output on one side, and 3G/HD/SD-SDI input and output on the other. It supports up to Full HD 1080p60 resolution and offers multiple input/output conversion modes.
Conversion Modes
- Auto select: Active input to all outputs, or SDI-to-HDMI and HDMI-to-SDI if both inputs are active
- HDMI input to SDI output and SDI input to HDMI output
- SDI input to HDMI and SDI outputs
- HDMI input to HDMI and SDI outputs
Other Features
- Supports 3G Level A and B and allows for conversion between both
- USB port for power, control, and firmware upgrades
- HDMI and SDI input locks
