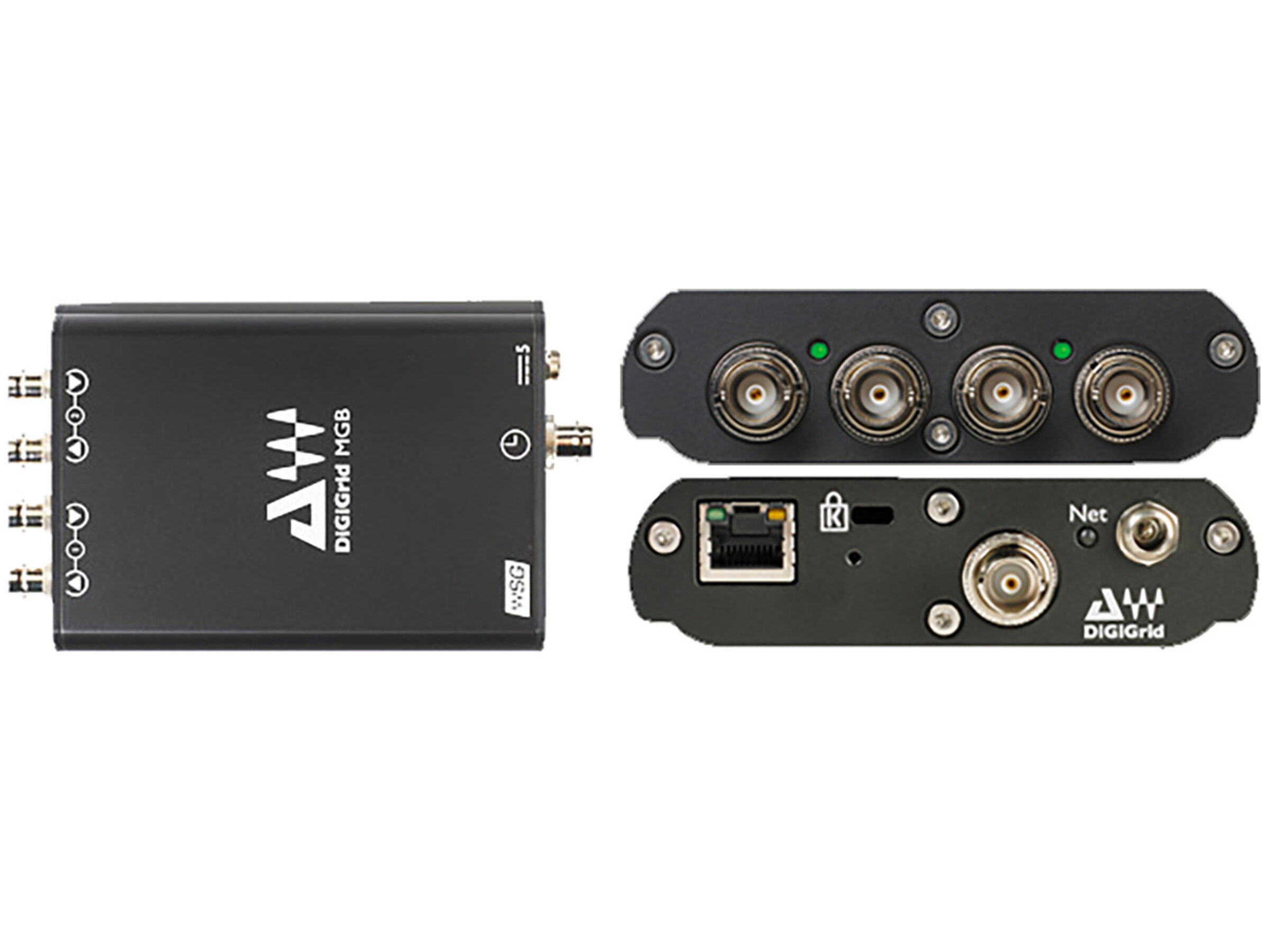

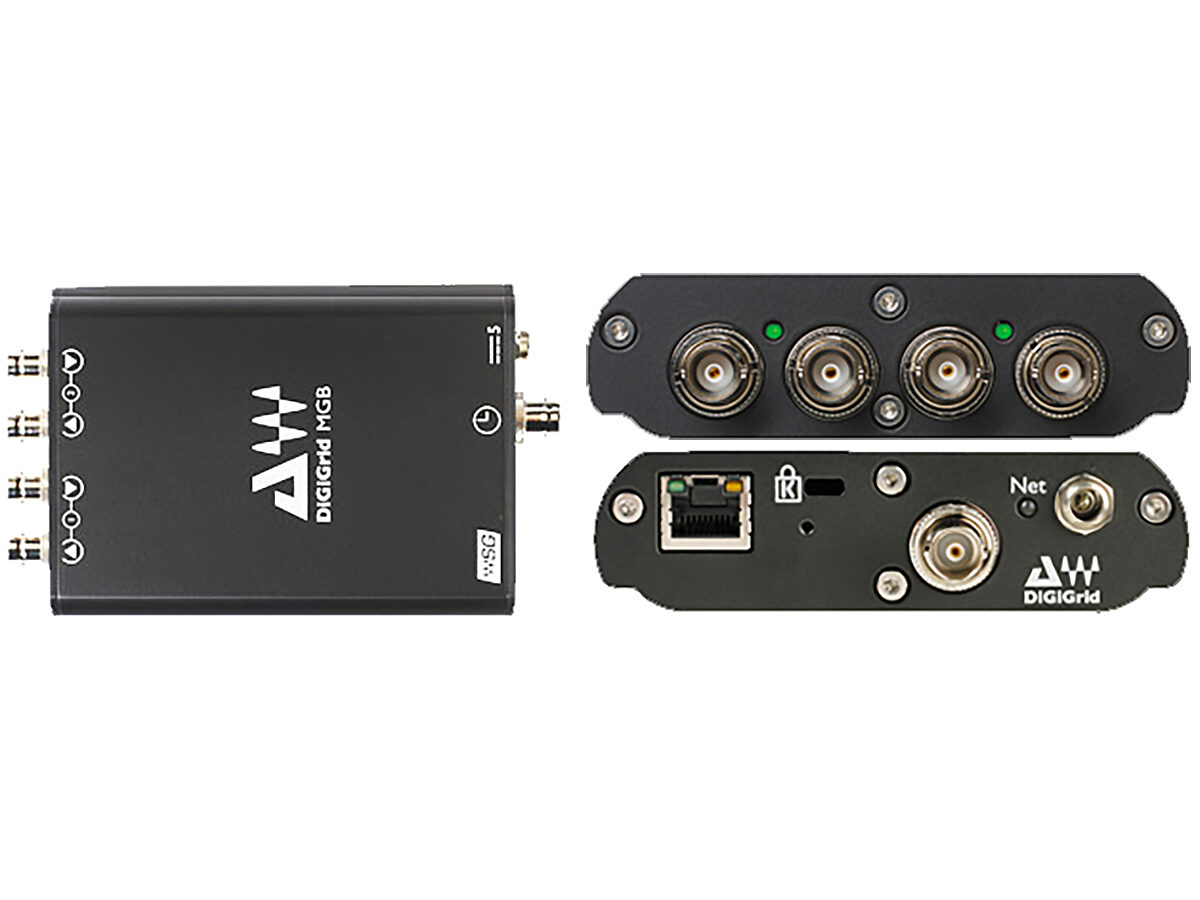

MGB Coaxial MADI Interface
- Includes: (4) 16ft 75ohm BNC Single Cable, (1) 7ft Cat-5 Ethernet Cable and Power Supply in Case.
- Delivery, setup and a technician available.
- Manufacturer
- DiGiGrid
- Model
- MGB
- Category
- Audio · Audio Consoles
Overview
DiGiGrid MGB:
Plug the MGB straight into your computer to record up to 128 channels with simultaneous playback of 128 channels. Add a SoundGrid DSP server and DiGiGrid SWI network switch plus Waves MultiRack SoundGrid host application, and your MADI-compatible live or broadcast console now has real-time low-latency processing capabilities. And if you require a higher level of audio quality, a simple configuration change switches the MGB to 96kHz, for 64 channels of recording and 64 channels of simultaneous playback.
Specifications
- MADI Coaxial I/O (BNC)
- Supported sample rates: 44.1, 48, 88.2, 96 kHz
- 112/128 channel I/O @ 48kHz
- 56/64 channel I/O @ 96kHz
- 56 and 64 channel mode support
- Supports double wire (48k frame) and single wire (96k frame) @ 96kHz
- Clock Synchronization via Word Clock input, MADI (Port 1 or 2), SoundGrid (Sync over Ethernet), Internal
- 1 SoundGrid RJ45 Ethernet port
- Reset switch
